Parameter

Performance

Sensor

CMOS

Scan Mode

640*480

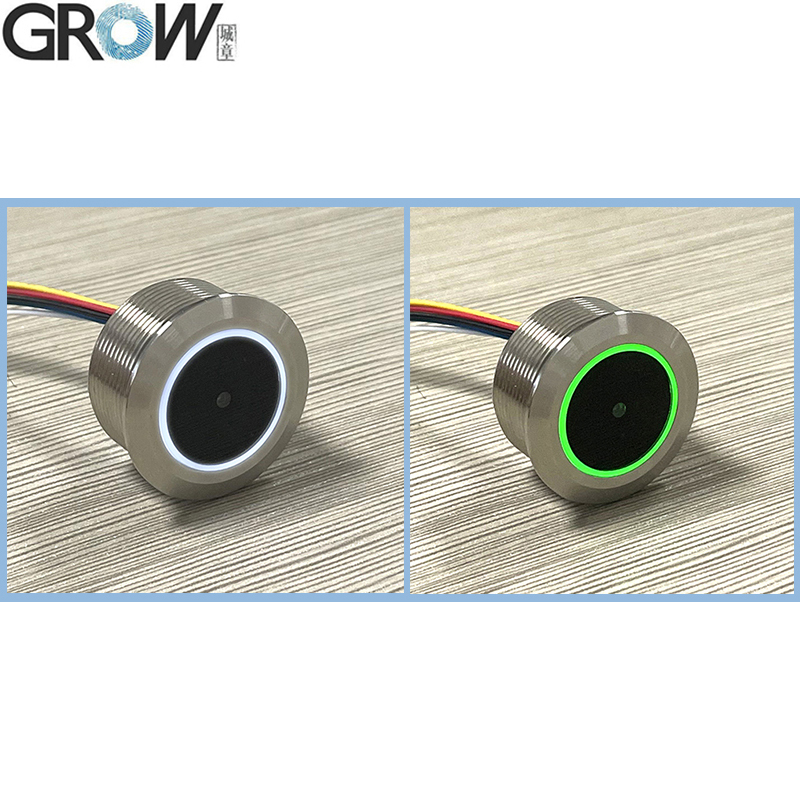

Indicator Light

Green light as read successfully

Read Code Type

1D:   EAN-13, EAN-8, UPC-A, UPC-E   ISSN, ISBN, CodaBar,Code 128,

      Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,

      Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,

GS1 Composite,GS1-Databar (RSS)

2D:   QR Code, Data Matrix, PDF417

GM861

Reading Distance

  5-30cm

Contrast*

＞25%

Scan Angle**

Roll: 360°  Pitch: 65°  Yaw: 65°

Viewing Angle

67° (Horizontal) 53° (Vertical)

Accuracy of reading*

≥10mil

Parameter

Performance

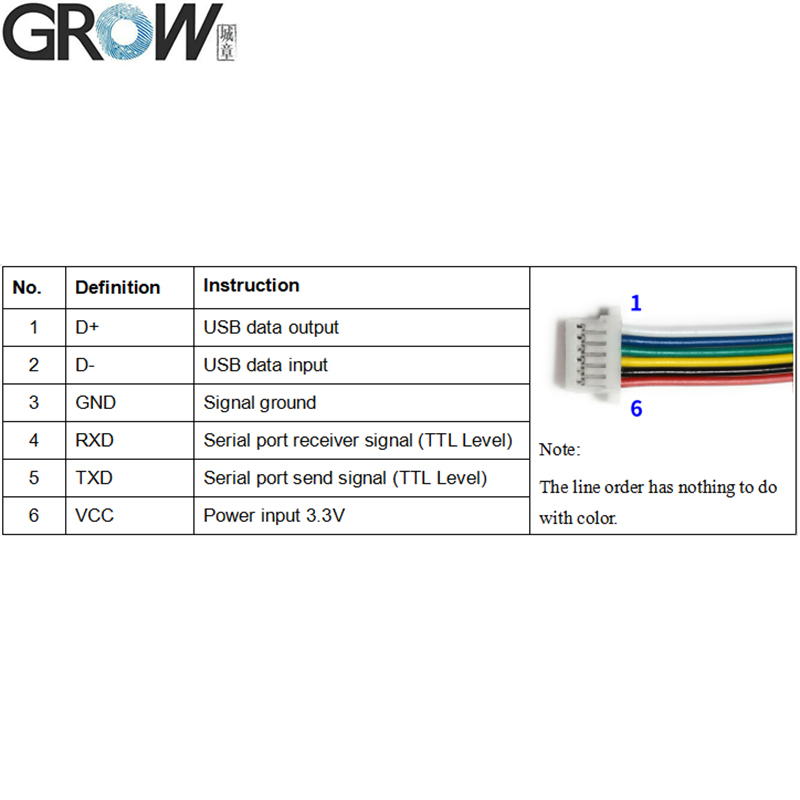

Interface

TTL-232/USB

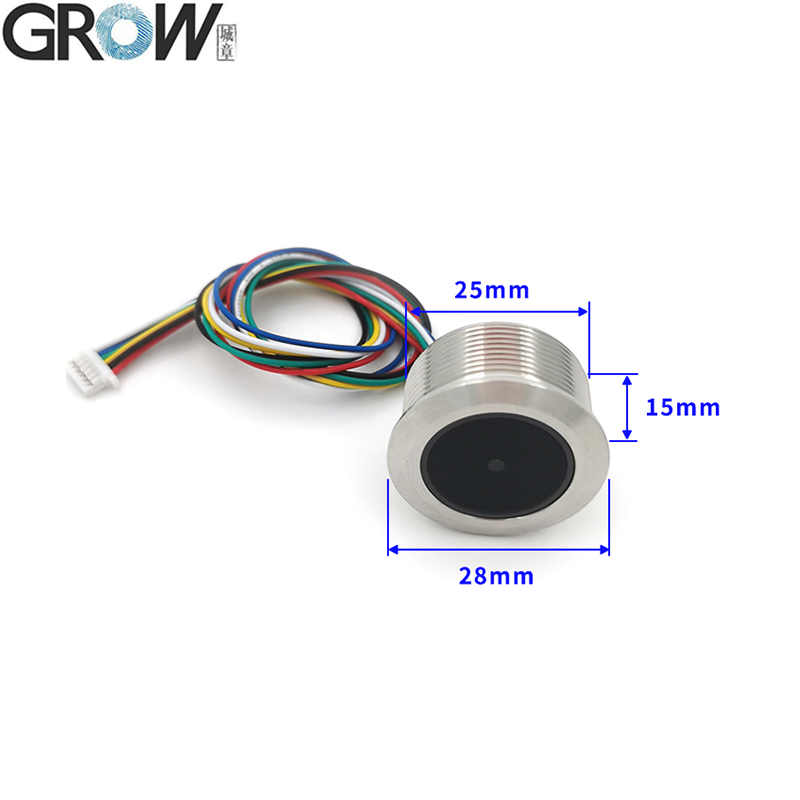

Size(mm)

External diameter: 28mm   Internal diameter: 25mm

Height: 15mm   Thread M25

Weight

25 g

Prompting mode

LED Indicator

Operating Voltage

3.3V

Operation Current

70mA(Max)

Standby Current

≤6mA(Typical)

Startup time

≤250mS (Typical)
