Product Description:
GM805 have UART and USB interface, it can read Qr code and Bar code.
Parameter:
|
Parameter |
Performance |
|
Sensor |
CMOS |
|
Scan Mode |
640*480 |
|
Lighting |
White LED |
|
Indicator Light |
Blue LED |
|
Read Code Type |
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
|
|
2D: QR Code, Data Matrix, PDF417 |
|
|

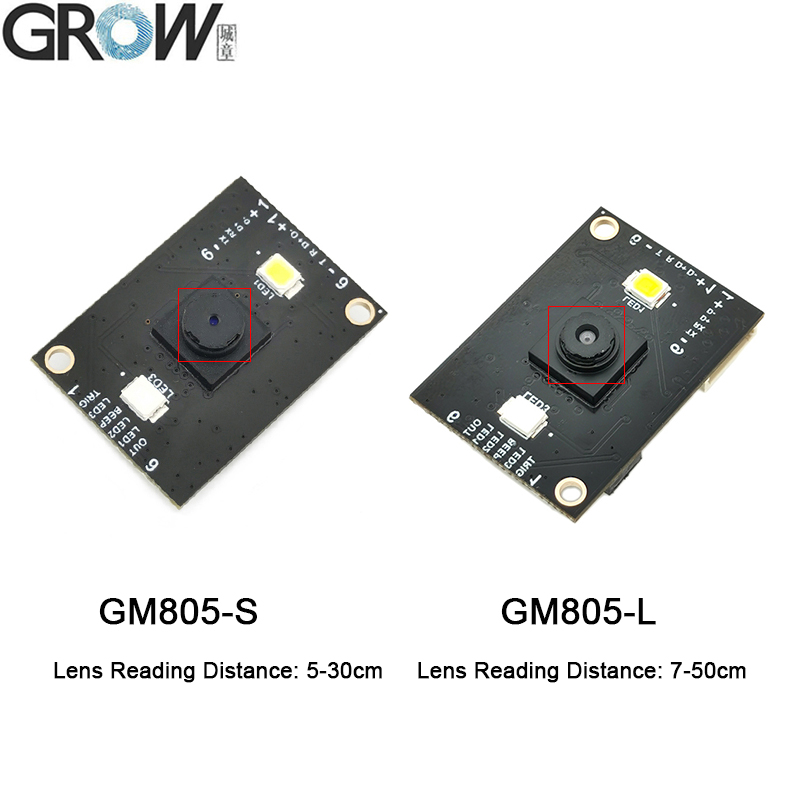

GM805-S Reading Distance |
5-30cm |
|
GM805-L Reading Distance |
7-50cm |
|
Contrast* |
＞25% |
|
Scan Angle** |
Roll: 360° Pitch: 65° Yaw: 65° |
|
Viewing Angle |
67° (Horizontal) 53° (Vertical) |
|
Accuracy of reading* |
≥10mil |
Mechanical/electrical Parameters:
|
Parameter |
Performance |
|
Interface |
TTL-232/USB |
|

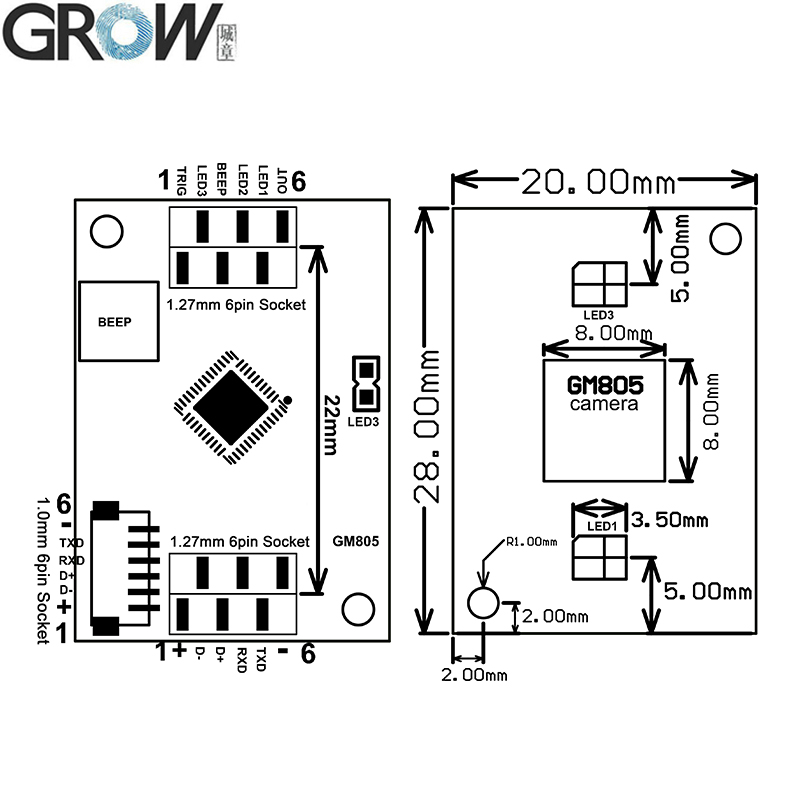

Size(mm) |
28*20 mm |
|
Weight |
2.1 g |
|
Prompting mode |
Buzzer LED Indicator |
|
Operating Voltage |
5V |
|
Operation Current |
70mA(Max) |
|
Standby Current |
≤6mA(Typical) |
|
Startup time |
≤250mS (Typical) |
Product Files
·Provide User Manual
·CE Certificate
Package: GM805 Barcode scanner + 15cm 6pin serial cable
Voltage: DC 5V
Current: 70mA
Resolution: 10mil
Size: 28 * 20mm
GM805 Barcode Scanner
