Product Description:
GM65 have UART and USB interface, it can read Qr code and Bar code.
Parameter:
|
SPECIFICATION
|
|
|
Model
|
GM65
|
|
Type
|
Barcode Scanner
|
|
Decoding Ability
|
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1 Composite, GS1-Databar(RSS)
2D: QR Code , PDF417, Data Matrix, Micro QR, Micro PDF417, Aztec
|
|
Interface
|
USB2.0 \ UART
|
|
Resolution
|
≥10mil
|
|
Operating Voltage
|
5V
|
|
Operating Current
|
70mA(Max)
|
|
Weight
|
8.5g
|
|

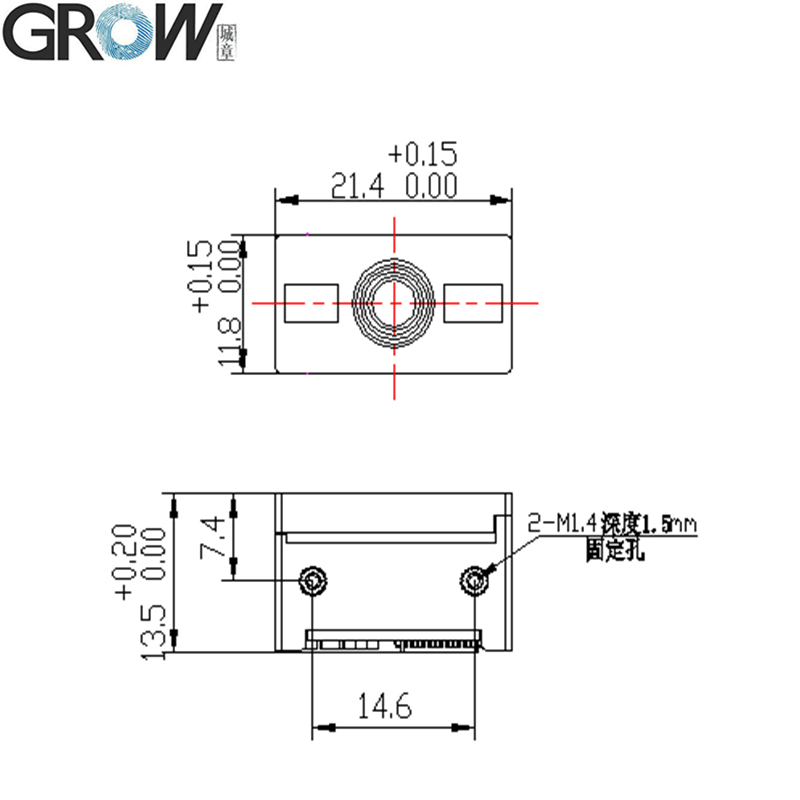

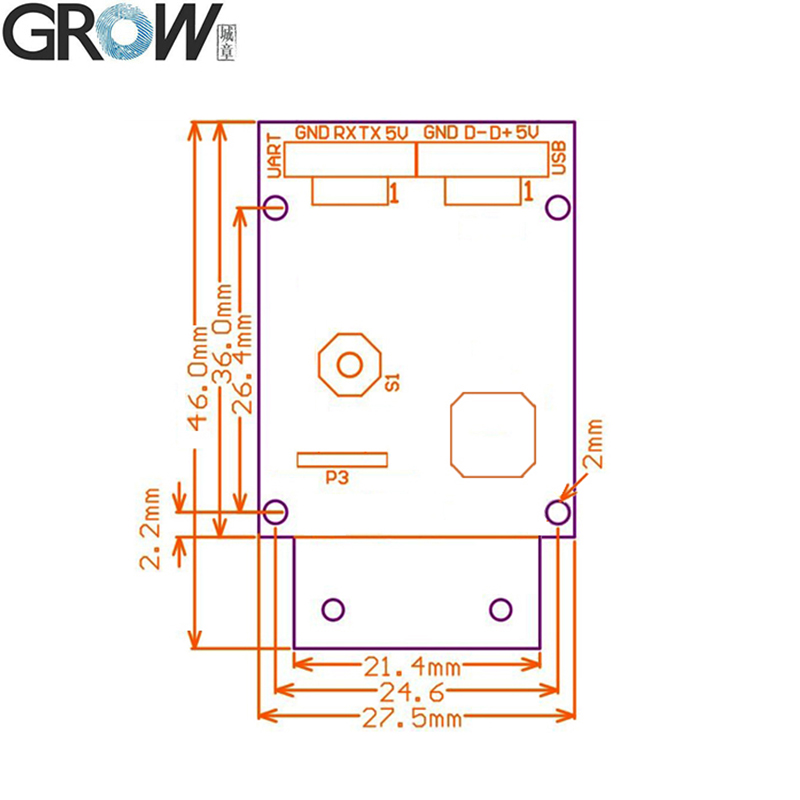

Size
|
46*27.5*13.5mm
|
|
Type of Illuminant
|
617nm LED(Aimer), 6500K LEDs(Illumination)
|
|
LED Indicator
|
Buzzer and bi-color light: Red-power, Blue-decoding Successfully
|
|
Scan Angle
|
Roll:0-360°, Pitch:±65°, Yaw:±65°
|
|
Scanning angle Inclination angle
|
67°(Horizontal), 53°(Vertical)
|
|
Print Contrast
|
30% minimum reflective difference
|
|
Reading Distance
|
25 - 250mm
|
|
Operating Temperature
|
-20 degrees to 60 degrees
|
|
Storage Temperature
|
-40 degrees to 70 degrees
|
|
Temperature Humidity
|
5% to 95% Relative humidity, Non-condensing
|
|
Light Levels
|
0-85000LUX
|
Product Files
·Provide User Manual
·CE Certificate

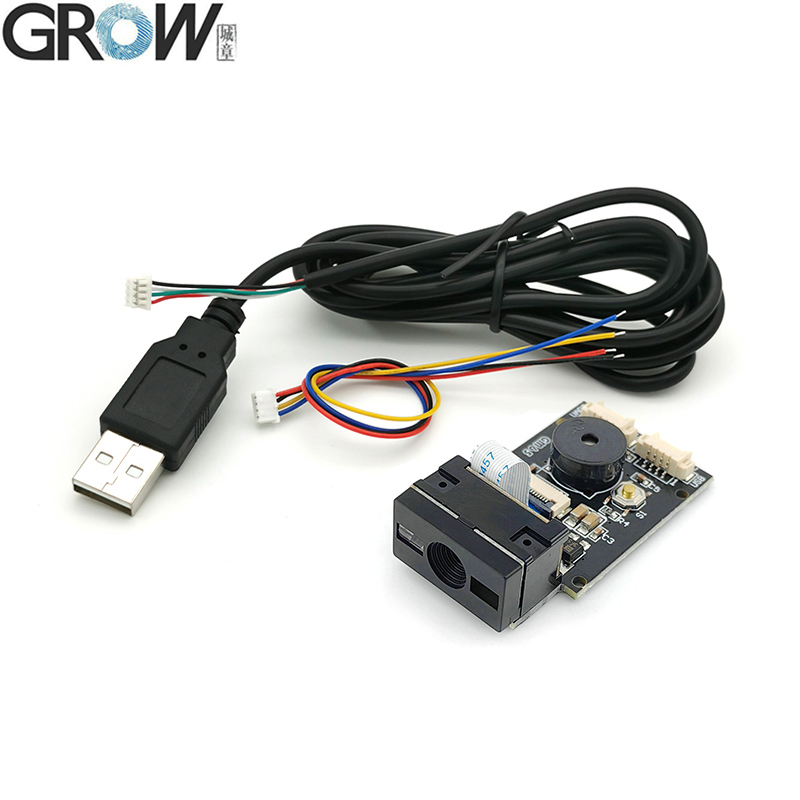

Package: GM65 Barcode scanner + 15cm 4Pin Serial Cable+1.5m USB Cable
Interface: UART/USB
Voltage: DC 5V
Current: 70mA(Max)
Resolution: ≥10mil
Size: 46 * 27.5*13.5mm
Voltage: DC 5V
Current: 70mA(Max)
Resolution: ≥10mil
Size: 46 * 27.5*13.5mm
Price：
$
17.00
GM65 Barcode Scanner
